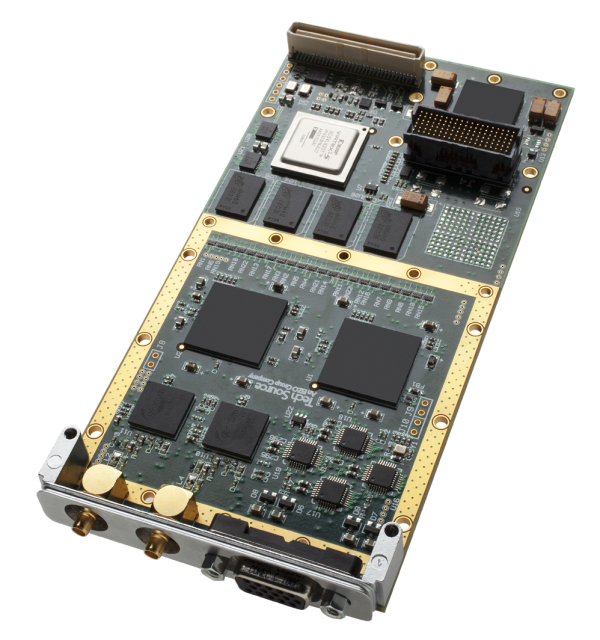

. has unveiled the low power Condor VC 100x H.264 video capture and compression card, designed to ease the video compression challenges in unmanned aircraft and in other surveillance, image detection and video recording applications.
Selwyn L. Henriques, President and CEO of Tech Source Inc., said: “This card has been designed for use in UAS and for other mission critical video streaming applications that require low power and yet high profile H.264 compression in a compact, lightweight form factor.”
The XMC form factor module – featuring an H.264 video encoder with baseline, main and high profile support up to Level 4.1 – supports up to 4 composite video inputs (NTSC/PAL/SECAM) or up to 2 SDI inputs (SD-SDI/HD-SDI), all of which are selectable through the provided API. Condor VC 100x also has 2 stereo or 4 mono audio inputs.
The Condor VC 100x card performs H.264 encoding in hardware to minimize CPU usage. Video data is captured and stored in files and made available to customer applications for processing, analysis or display on a local graphics card.
The Condor VC 100x XMC configuration also supports transfer of the video stream via UDP or TCP/IP using RTP and RTSP protocols for remote display of captured data with low latency. An API is provided to manage captured video data. IO is handled either through the front connector or through the rear Pn4 connector.
Condor VC 100x is available in various ruggedized levels and has conduction or convection cooled variants. While Windows or Linux drivers are available by default, other real time operating systems (RTOS) such as VxWorks, Integrity and LynxOS may be optionally supported on both X86 and PowerPC platforms.
Tech Source has been developing graphics solutions for air traffic control, military and embedded applications for over 20 years. The ISO9001:2008 certified company offers a range of commercial-off-the-shelf (COTS) products, including graphics processors – targeted at general purpose graphics processing unit (GPGPU) applications, input solutions, video compression and streaming boards, imaging cards, recording solutions and software libraries. Key markets include airborne, shipboard, unmanned aircraft systems , and ground based systems.
Tech Source, Inc. has provided computer graphics hardware solutions to the air traffic control and defence markets for over 20 years. Tech Source is a subsidiary of Eizo Nanao Corporation, a leading global manufacturer of high-end display monitors. The companies offer combined expertise, cutting-edge graphics solutions, and complementary product lines for ATC, defence, and other markets.
Source: Press Release
