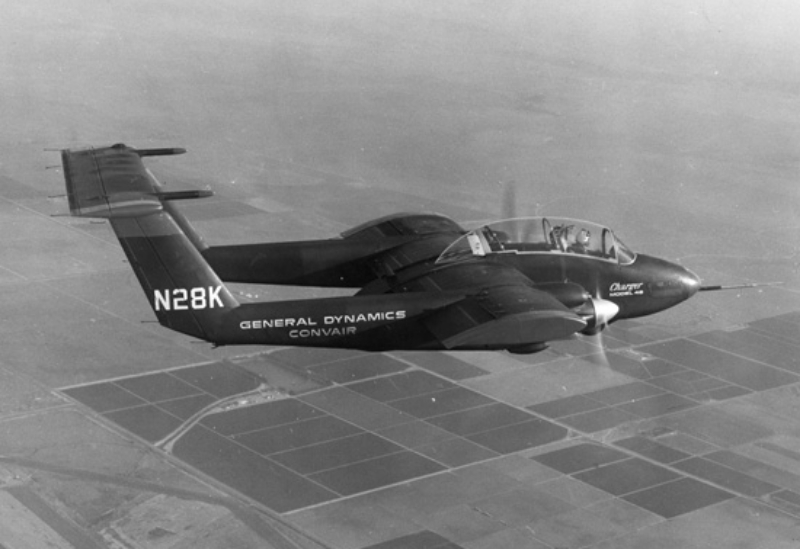

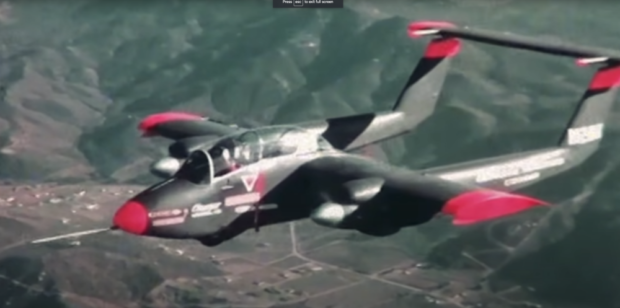

The multi-mission General Dynamics Convair Model 48 Charger was a prototype for a light attack and observation aircraft designed and developed for the Vietnam War as one of its first counter-insurgency aircraft.
The project was undertaken under extreme secrecy. In March of 1964, 30 engineers and production workers at the Convair facilities in San Diego, California, started working in a secluded area. That number would eventually increase to 200.
It was a two-seat, twin-boom aircraft powered by two turboprop engines which lost out to the North American Rockwell OV-10 Bronco of similar layout. Only the single prototype Model 48 was built, and this turned out to be the last complete aircraft constructed by Convair.
Design and development
In 1959, two United States Marine Corps officers developed the concept of a small low cost aircraft capable of providing close air support to the U.S. Marines, capable of operating from roads close to the battlefield, the concept being known as the Light Light Marine Attack Aircraft (L2VMA). As interest in such an aircraft grew, with interest from the US Army for a similar type, the Convair Division of General Dynamics started studies into counter-insurgency aircraft in 1961. In 1963, the various requirements were merged into a tri-service specification for a Light Armed Reconnaissance Aircraft (LARA), to be used not just by the U.S. Marines and Army, but also by the United States Air Force for counter-insurgency and forward air control roles, and to be available for export.
The specification produced responses from nine manufacturers, including Convair, who submitted its Model 48 Charger in March 1964. The Model 48 was a twin-boom monoplane, constructed mainly from aluminium, with fiberglass nose, rear fuselage and wingtips, with a retractable nosewheel undercarriage. It was powered by two Pratt & Whitney Canada PT6 (military designation T74), driving three bladed propellers. Its wings were of relatively short (27 ft 6 in/8.38 m) span, which meant that most of the wing was in the slipstream of the propellers, increasing the effectiveness of the full-span trailing-edge slotted flaps and leading edge slats inboard of the engines, which together acted to deflect the slipstream, giving a form of vectored thrust, in order to reduce takeoff and landing distances.
The outer trailing-edge flaps doubled as ailerons, which were supplemented by spoilers at low speed. The aircraft was fitted with a large, all-moving tailplane which attached to the vertical fins located at the ends of the tailboom(s), with the tailplane having somewhat greater span (20 ft (6.1 m)) than the distance between the tailbooms.
Pilot and observer sat in tandem under a sliding canopy, while the rear fuselage held a cargo bay with a hinged tail cone capable of carrying 2,000 lb (910 kg) of cargo, which could include a complete PT6 engine, or five paratroopers, in extremely cramped conditions, with a sixth paratrooper in the observer’s seat. Four 7.62 mm machine guns were mounted in pods on the side of the fuselage, while 2,000 lb (910 kg) of external stores, including bombs, rockets and gun pods, could be carried on hardpoints under the wings and fuselage. To meet the specification’s requirements for amphibious operations, it could be fitted with two large floats.
